TDM-P190SH5TAGF-RND2
19" touch monitor for defense applications, MIL-STD-461G/1275E certified
Features
- 19 inch touch monitor specialised for defense
- Robust capacitive LCD touchscreen
- 1280 x 1024p resolution
- Front IP65 protected
- Rackmount with handles
- Screw-locked ports
- -40 ~ 70°C operating temperature
- MIL-STD-1275E, MIL-STD-461G certified
Product information "TDM-P190SH5TAGF-RND2"
The Elgens TDM-P190SH5TAGF-RND2 is a high-performance 19-inch touch monitor specifically designed for demanding defense applications. With its robust construction, certified protection standards and state-of-the-art display technology, it is ideal for environments with extreme conditions.
Key features:
- 19" LCD display with 1280x1024 resolution - Delivers razor-sharp image quality for tactical applications.
- Optical bonding with Mosmite film - Improves readability in sunlight, reduces reflections and increases structural strength.
- Bright 1500 nits LED backlight - For optimum visibility even in direct sunlight.
- P-Cap Touch with anti-glare - Precise capacitive touch operation even with gloves, combined with anti-reflective coated surface.
- IP65 protection on the front - Protection against dust, water jets and harsh environmental influences.

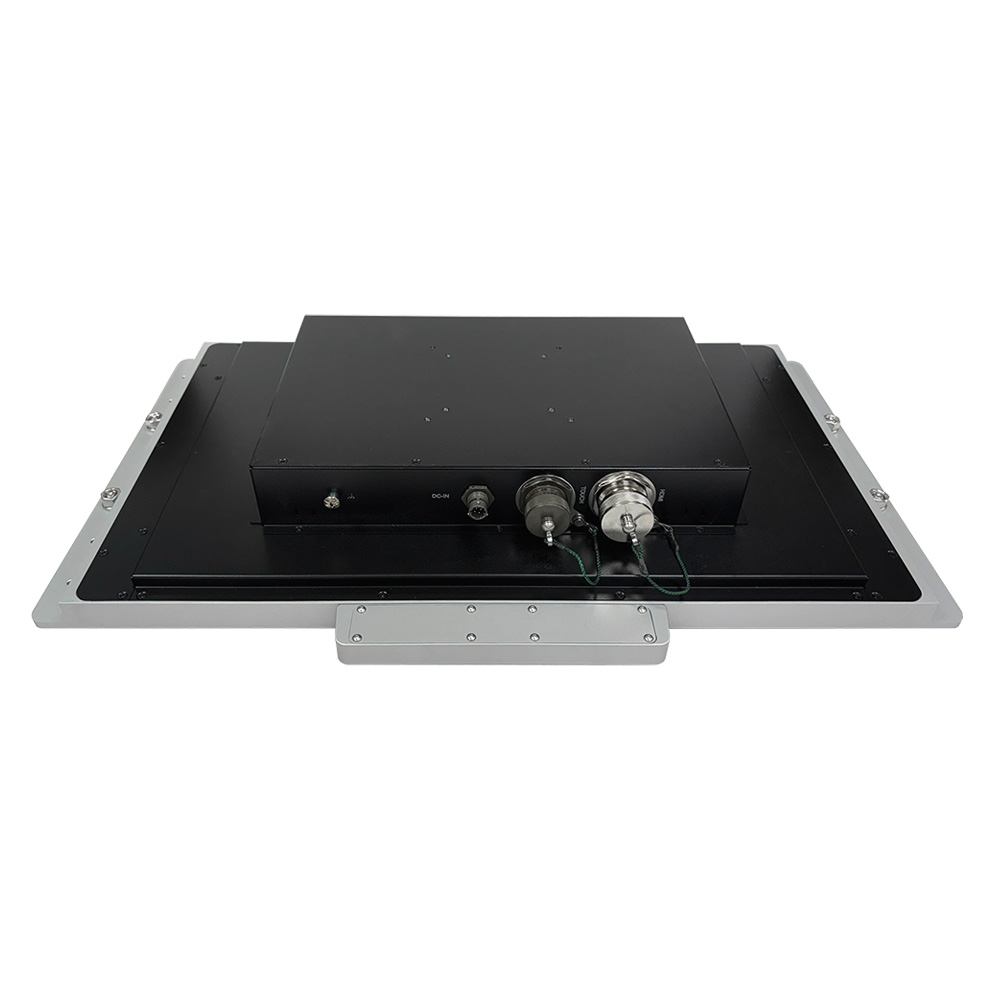

- D38999 military connector for all I/O - Highest reliability and secure connection in critical applications.
- HDMI interface - Flexible digital video connection.

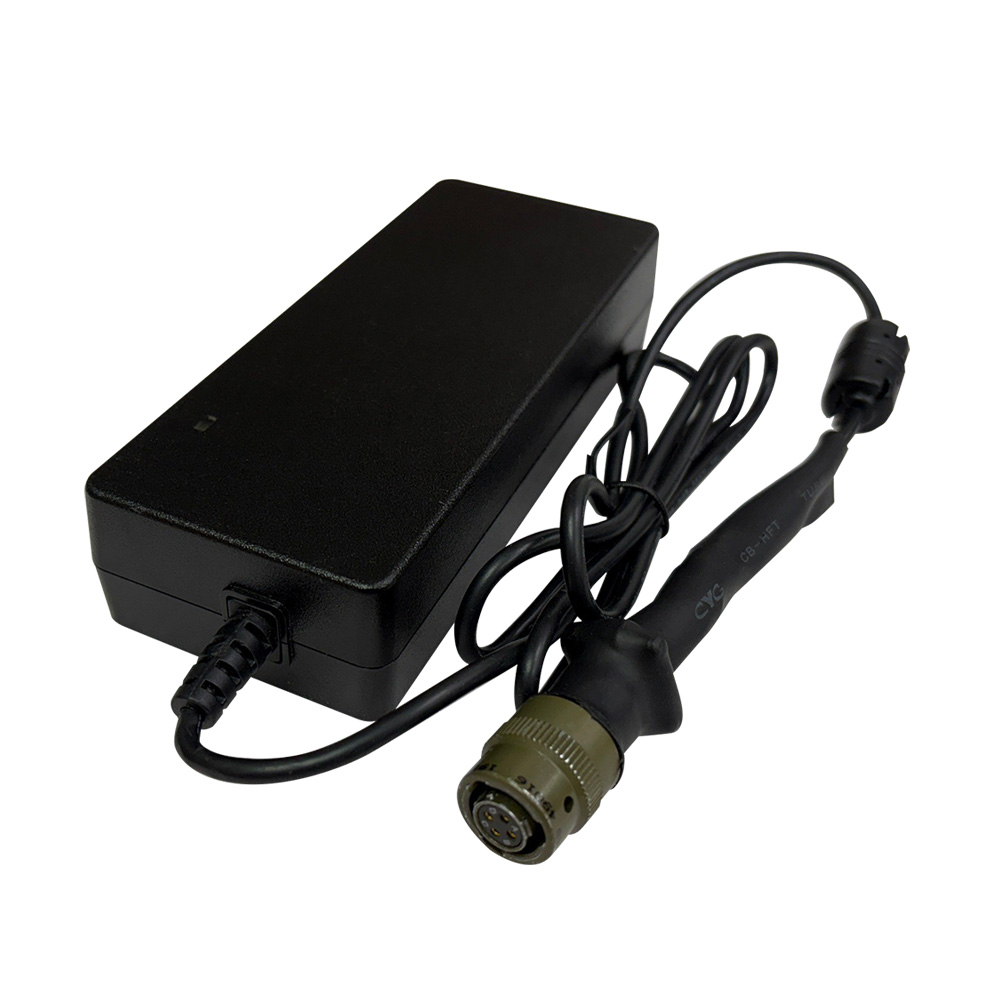

- Wide voltage range (DC 9-36V) with 90W adapter - For mobile and off-grid applications.
- MIL-STD-461G & MIL-STD-1275E compliant - Meets stringent military standards for electromagnetic compatibility and power supply.
- Extended operating temperature range (-40 to +70 °C) - Guarantees functionality under extreme climatic conditions.

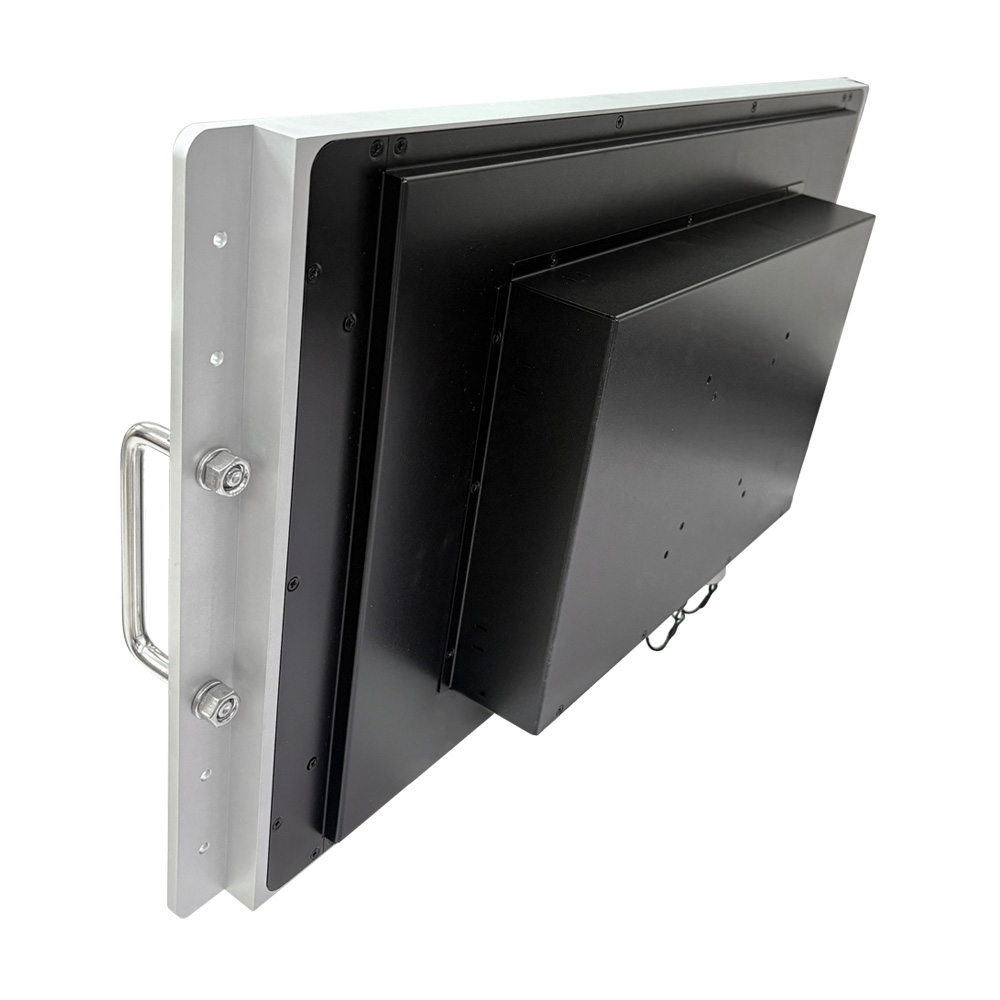

- RackMount design with carrying handles - For easy integration and mobility in 19-inch system cabinets.
The TDM-P190SH5TAGF-RND2 combines robust construction with modern technology - ideal for command centers, mobile operations units, vehicle integration and other military applications where uncompromising reliability is required.
Technical details
| Background light: | 1500 Nits |
|---|---|
| Certificates: | FCC / CE Class A Certification, MIL-STD-461G, MIL-STD-810H, Method 514.8, Procedure I, MIL-STD-810H, Method 516.8, Procedure I, MIL-STD-1275E |
| Contrast Ratio: | 5000:1 |
| DC Input: | MS3114E8 Connector |
| Display size: | 19" |
| Housing: | Aluminum, Stainless steel |
| Humidity: | 10% ~ 90% (non-condensing) |
| IP protection class: | IP65 |
| Mounting: | VESA, Wall-mount |
| Operating Temperature: | -40°C ~ 70°C |
| Power supply: | 9 ~ 36V DC |
| Screen resolution: | 1280 x 1024 |
| Surface: | Anti-Glare |
| Touch: | Projected Capacitive Touch |
| USB Ports: | 1x |
| Video: | HDMI |
