TDM-P150SH5TAGF-RND2
15" touch monitor for defense, MIL-STD-461G/1275E certified
Features
- 15 inch touch monitor especially for defense
- Robust capacitive LCD touchscreen
- 1024 x 768p resolution
- Front protection class IP65

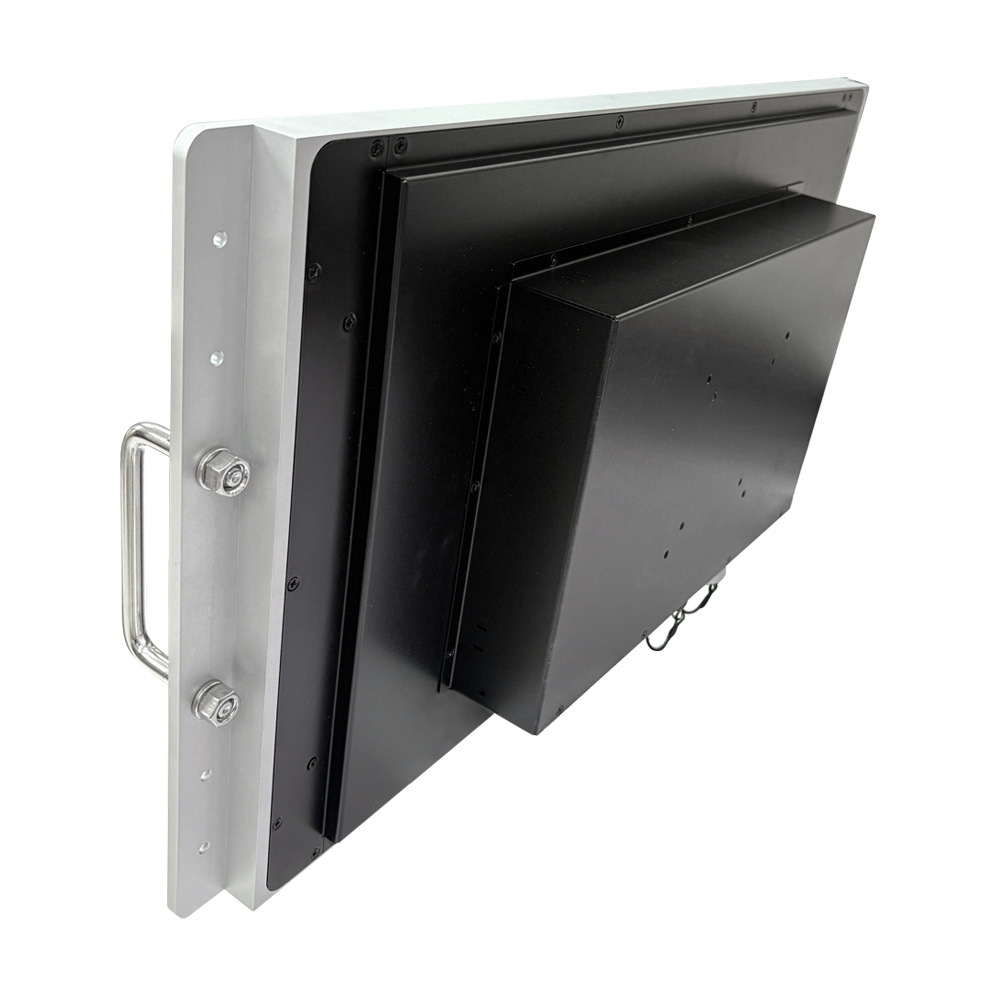

- Rackmount with special handles
- Screwable connections
- Temperature range from -40 ~ 70°C
- Certified according to MIL-STD-1275E, MIL-STD-461G and others
Product information "TDM-P150SH5TAGF-RND2"
The TDM-P150SH5TAGF-RND2 is a particularly robust 15-inch touch monitor from Elgens that has been specially developed for safety-critical applications in the military and industrial sectors. With its robust design, high brightness and tested military standard compliance, it offers a reliable display and operating solution for extreme operating conditions.
Main features:
- 15" LCD with 1024x768 resolution (XGA) - Clear display in a compact, tried-and-tested format.
- P-Cap touchscreen (capacitive) - Precise and reliable touch operation, even when wearing gloves.
- 1500 nits LED backlight - High screen brightness for optimum readability in direct sunlight.
- Optical bonding with Mosmite film and AR coating - Improves contrast and visibility, reduces reflections and increases structural strength.
- Anti-glare surface - Prevents reflections for optimum readability in changing light conditions.
- IP65-certified aluminum front panel in rackmount design - Protection against dust and water jets, ideal for mobile or stationary systems.
- Versatile video inputs (HDMI, VGA, DisplayPort) - Flexible integration into modern and classic infrastructures.

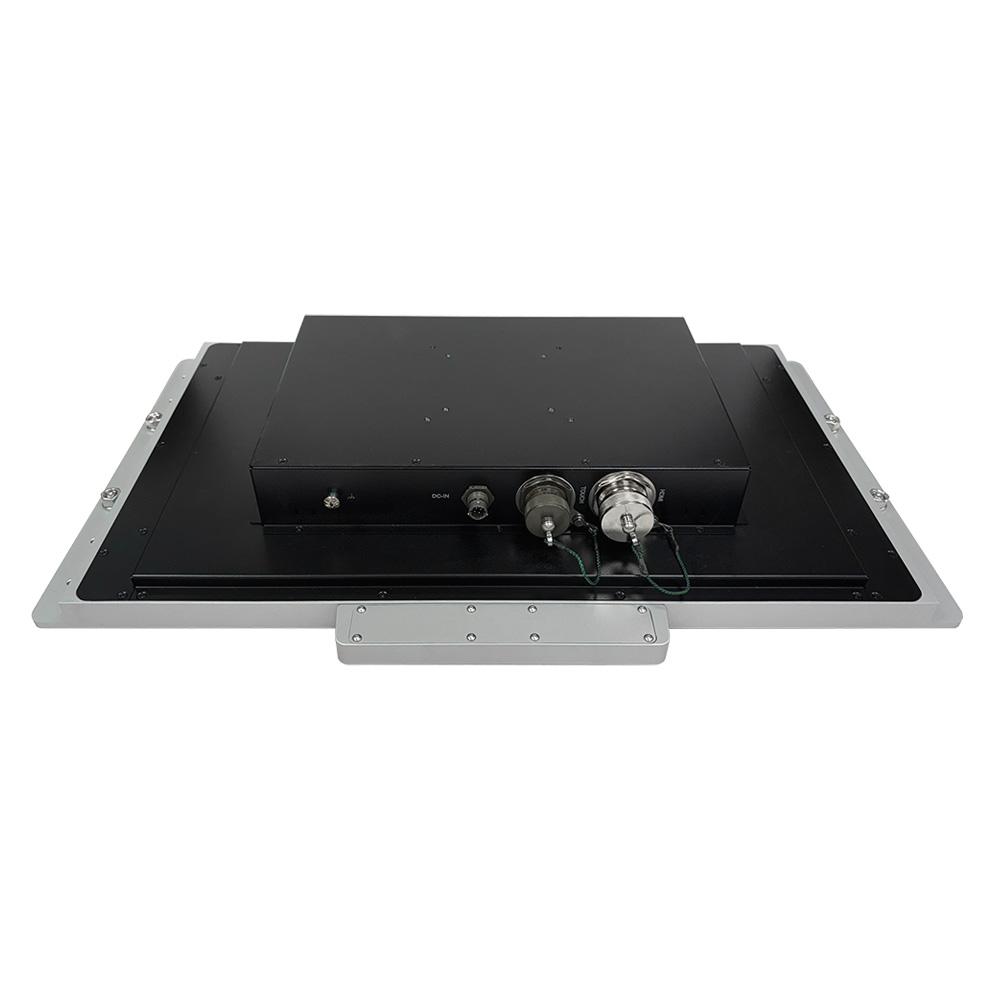

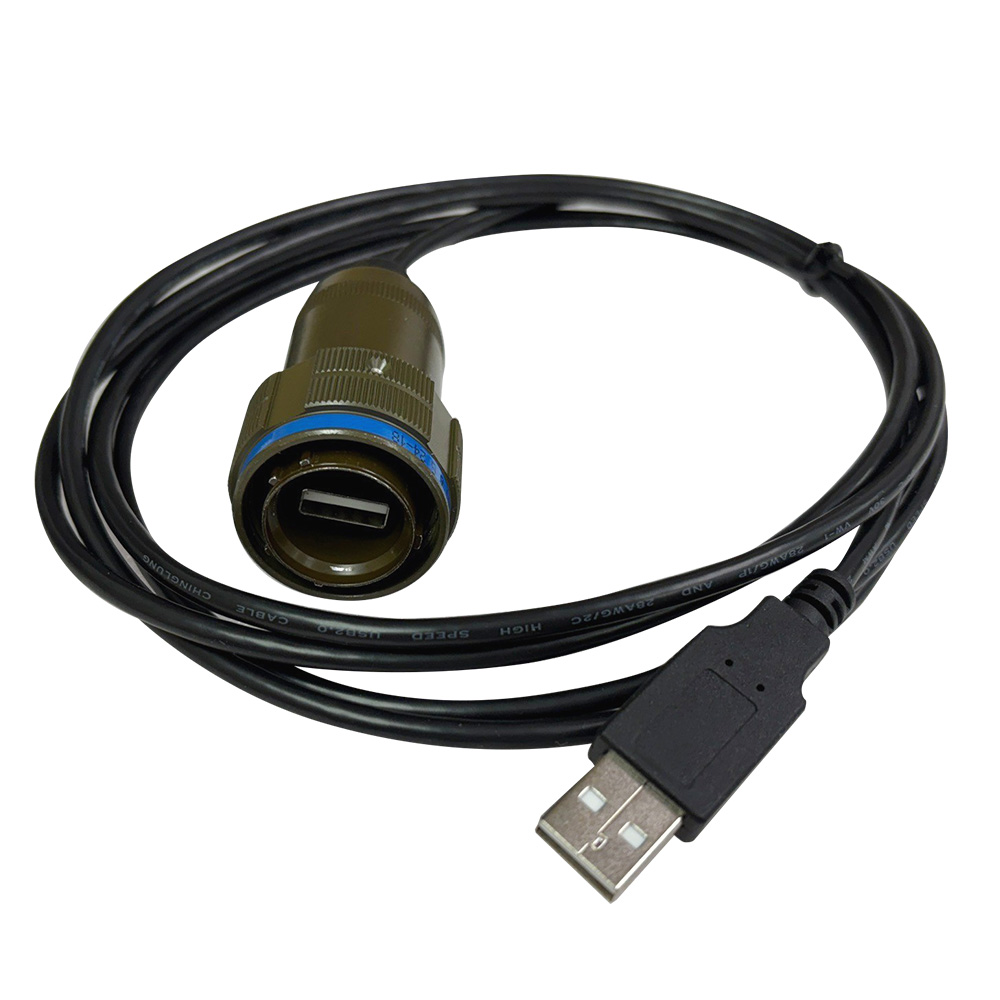

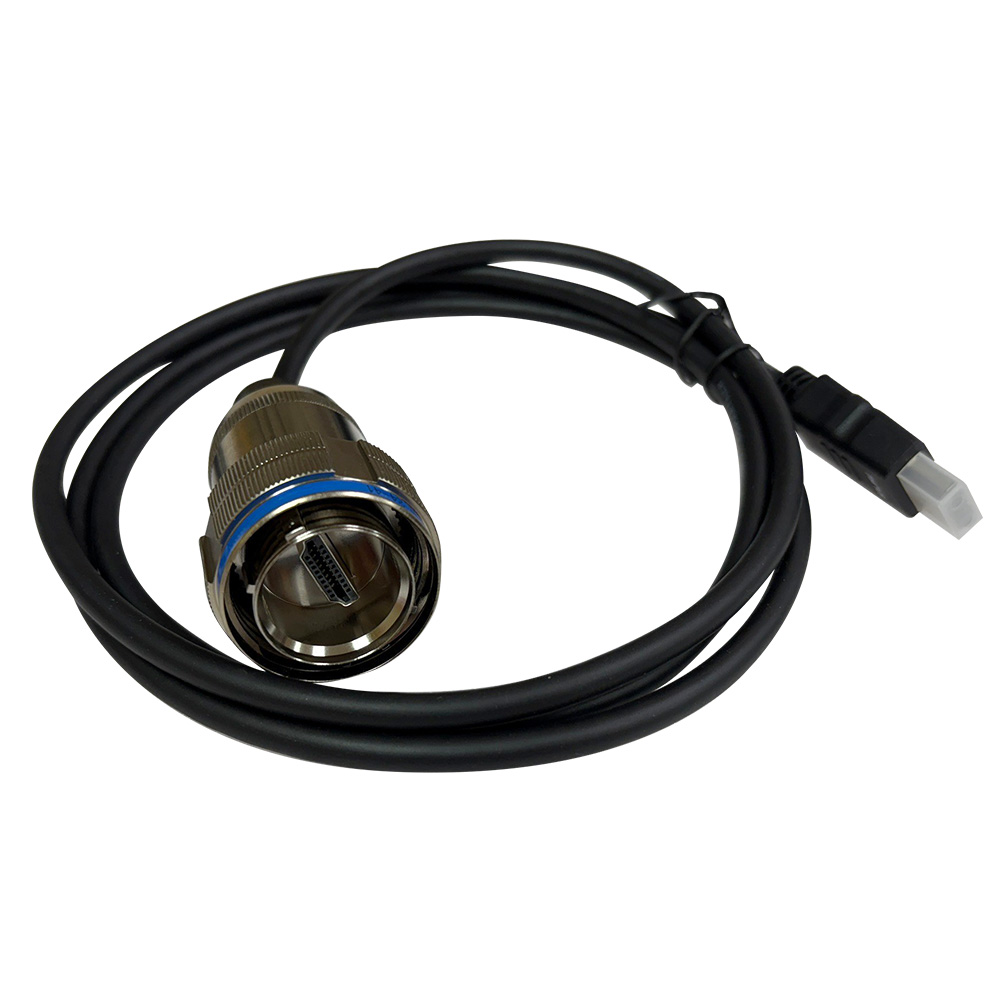

- Robust metal circular connectors for HDMI, USB and power supply - Military standard connectors for maximum safety and reliability.
- 9-36V DC power supply via MS3114E8 circular connector - 90W power supply included, ideal for mobile applications and vehicle integration.
- Certified to MIL-STD-461G and MIL-STD-1275E - Complies with military standards for electromagnetic compatibility and power supply.
- Extended temperature range (-40 °C to +70 °C) - Reliable operation even under extreme environmental conditions.
The TDM-P150SH5TAGF-RND2 is the ideal choice for military command centers, vehicle installations, industrial control stations and all environments where reliability, readability and durability are paramount.
Technical details
| Background light: | 1500 Nits |
|---|---|
| Certificates: | CE, FCC Class A, MIL-STD-810H, Method 514.8, Procedure I, MIL-STD-810H, Method 516.8, Procedure I, MIL-STD-1275E, MILSTD-461G |
| Contrast Ratio: | 700:1 |
| DC Input: | MS3114E8 Connector |
| Display size: | 15" |
| Housing: | Aluminum, Stainless steel |
| Humidity: | 10% ~ 90% (non-condensing) |
| IP protection class: | IP65 |
| Mounting: | VESA, Wall-mount |
| Operating Temperature: | -40°C ~ 70°C |
| Power supply: | 9 ~ 36V DC |
| Screen resolution: | 1024 x 768 |
| Surface: | Anti-Glare |
| Touch: | Projected Capacitive Touch |
| USB: | USB 2.0 |
| USB Ports: | 1x |
| Video: | HDMI |
