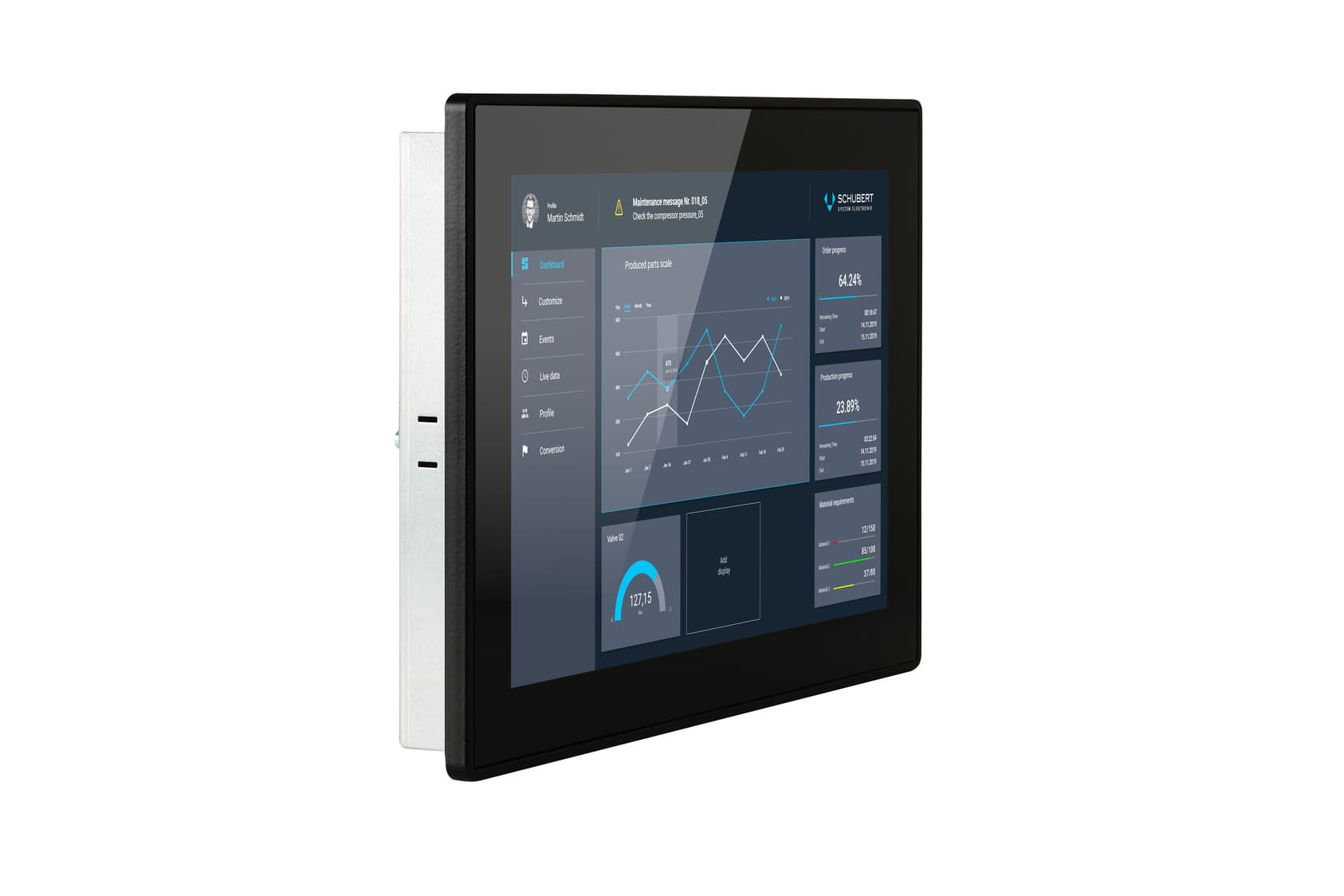

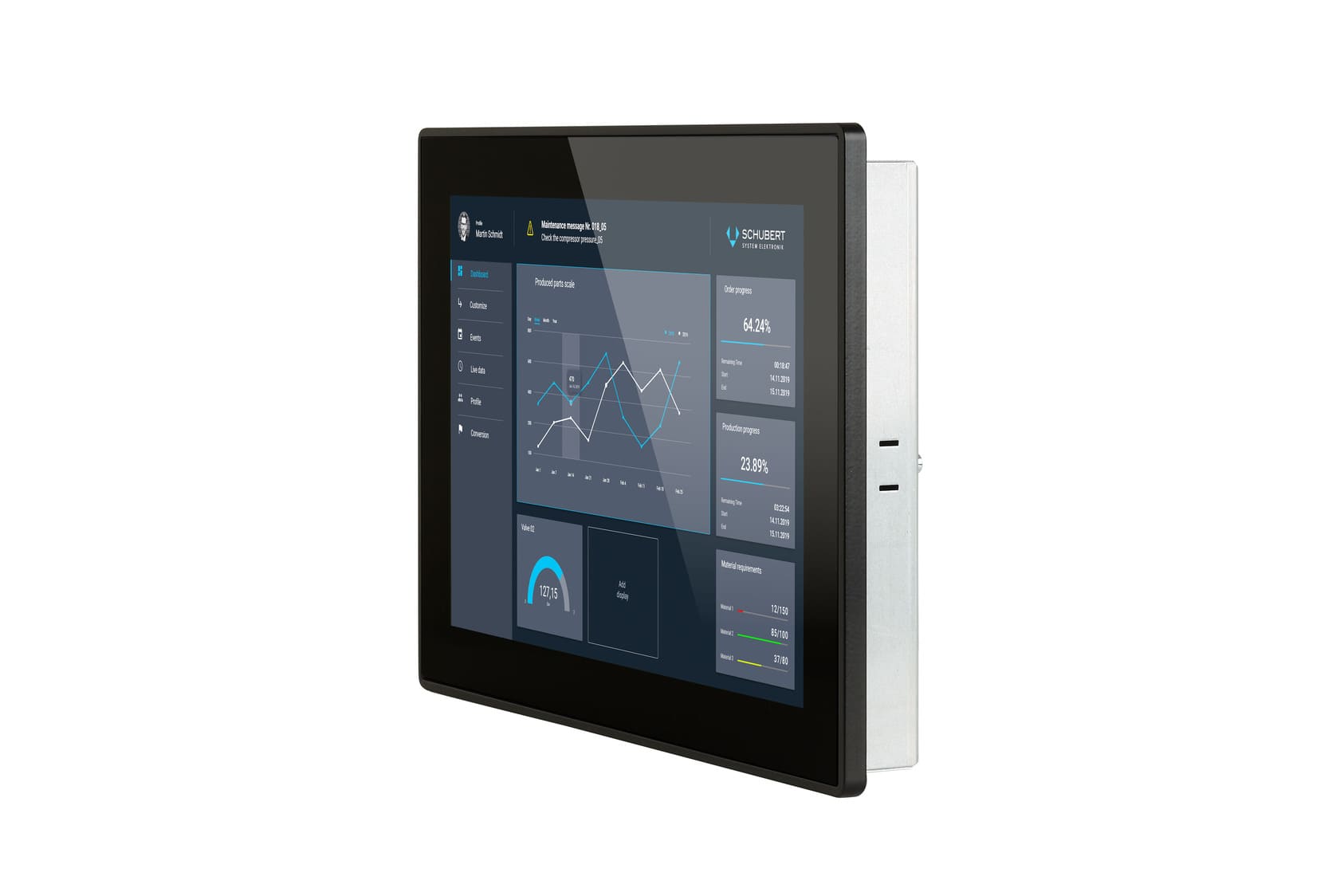

Select Panel Client
Compact web client for client-server architectures
Features
- 10.1" HMI panel for web visualisation
- 1280 x 800p capacitive WXGA display
- ARM64 i.MX 8M Plus quad CPU
- 2 GB RAM, 8 GB eMMC flash memory

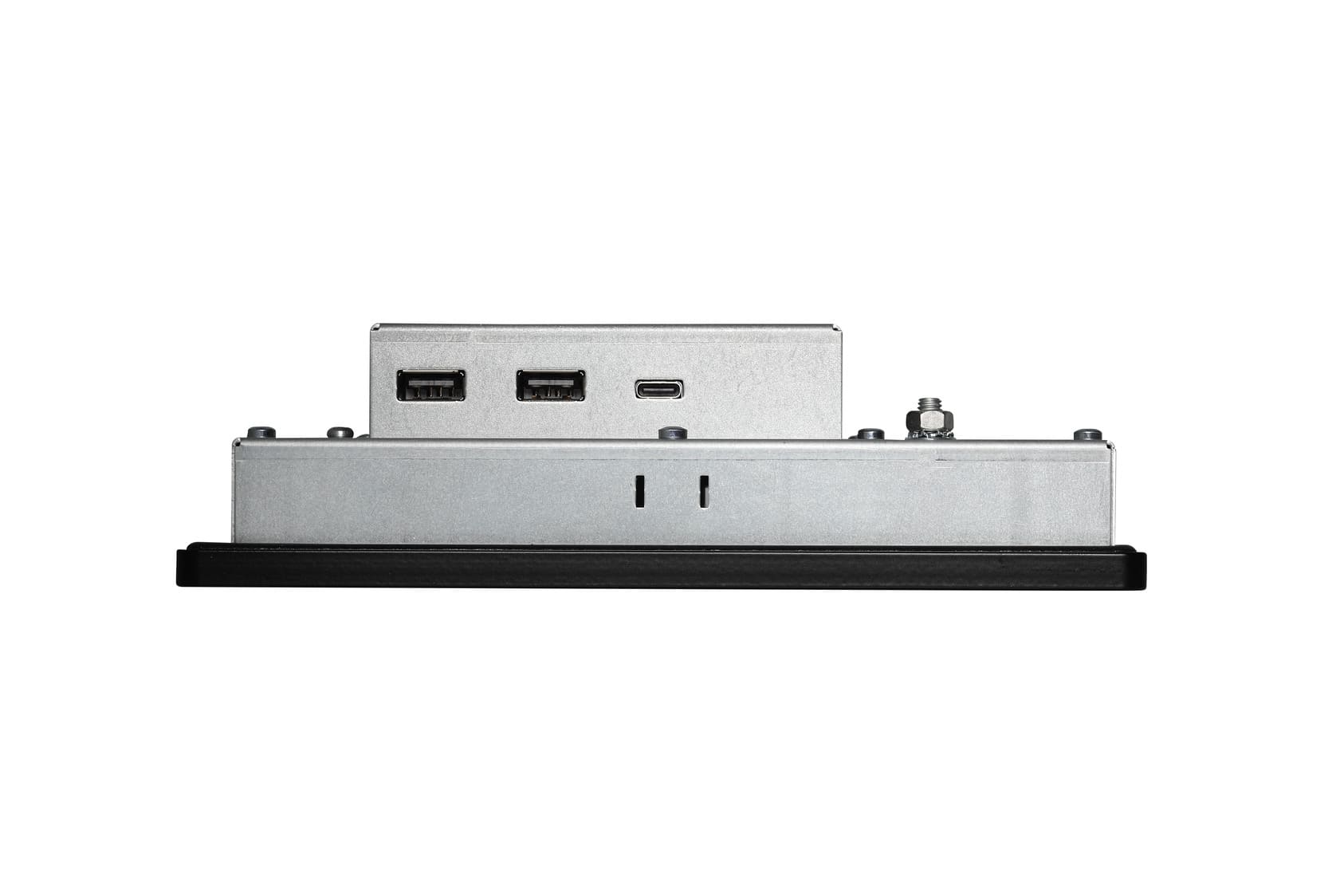

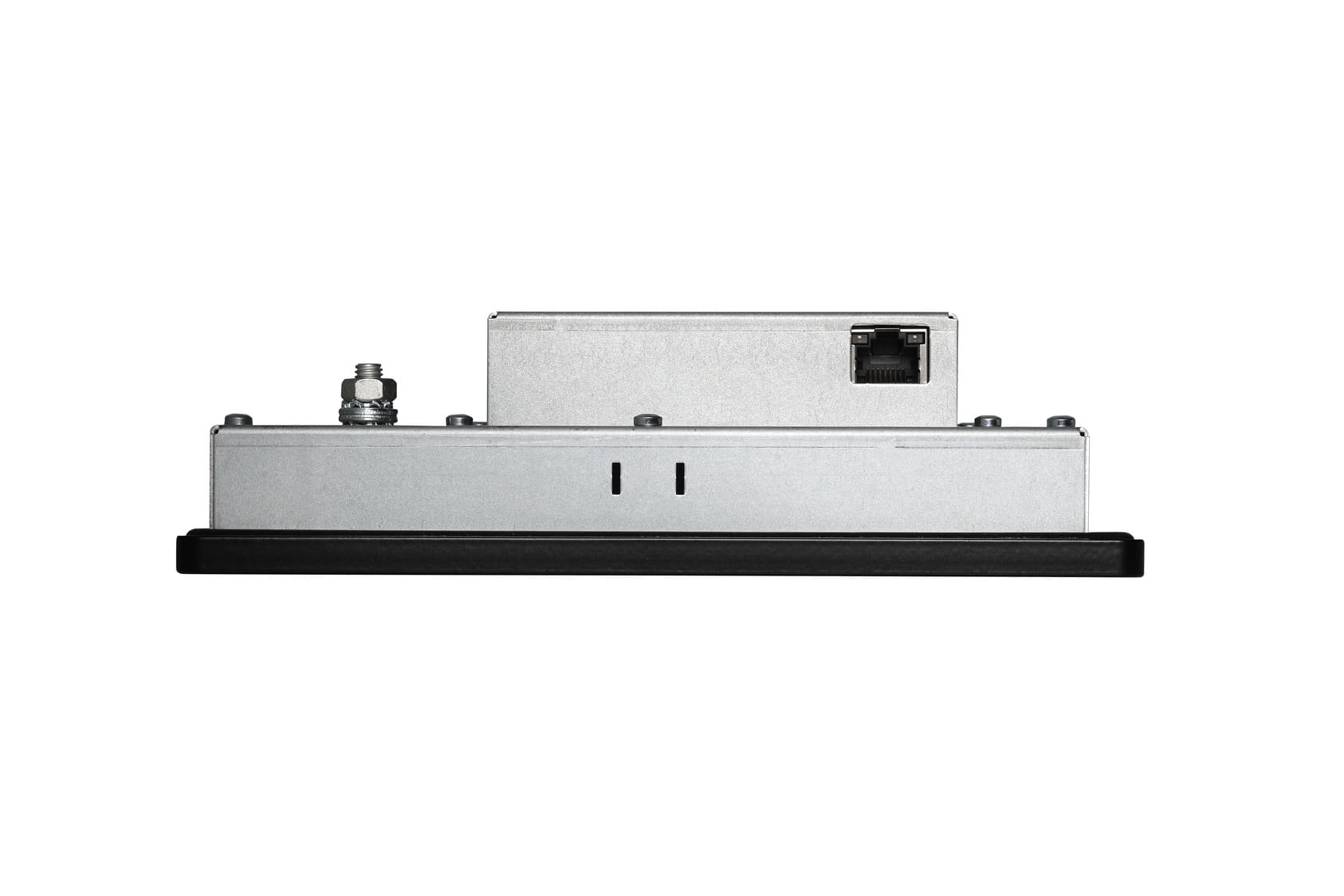

- 1x USB-C, 1x USB 2.0, 1x GbE Ethernet (PoE)
- With Prime OS Client operating system and integrated web server
- Power supply via PoE++
Compact web client for client-server architectures
Optimised for easy integration, maximum reliability and impressive value for money, equipped with an i.MX8M Plus quad processor and a brilliant WXGA 10.1" display with a resolution of 1280x800, the panel is ideal for demanding HTML5 visualisations.
Power over Ethernet (PoE) reduces wiring costs, while precise, interference-free multi-touch, a robust aluminium frame, hardened front glass and a sturdy steel housing ensure safe and reliable operation.
The Prime OS Client operating system and intuitive configuration wizard enable quick integration into your infrastructure. Simply install, connect and get started!
Simple parameterisation with WEB or VNC protocol
Prime OS Client - Ready-to-go Web-Client Software.
The intuitive Prime OS Client web client software provides a reliable basis for visualising HTML5 content, and the configuration wizard makes connecting to the server for the first time much easier.
The Prime Tool Set provides efficient support for system management with advanced network configuration, a web interface and an API interface.
Technical details
| CPU: | ARM64 i.MX 8M Plus Quad |
|---|---|
| Certificates: | CE, EN 60068-2-27, EN 61000-6-2, UL (optional) |
| DC Input: | PoE |
| Display size: | 10,1" |
| Ethernet: | Gigabit |
| Ethernet Ports: | 1x |
| Housing: | Aluminum |
| Humidity: | 20% ~ 90% (non condensing) |
| Memory: | 1x DDR4 Slot |
| Memory capacity: | 2 GB |
| Mounting: | Mounting clamps |
| Operating Temperature: | 0°C ~ 50°C |
| Operating system: | Prime OS Client |
| PoE: | Yes |
| PoE-Standard: | IEEE 802.3bt (PoE++) |
| Power supply: | 48 V DC |
| Screen resolution: | 1280 x 800 |
| Touch: | Projected Capacitive Touch |
| USB: | USB-C, USB 2.0 |
| USB Ports: | 1x, 2x |
| eMMC: | 8 GB eMMC Flash |
