Prime Panel Pico 15,6" Einbau
Robust Capacitive 15.6" IP65 Panel PC with Intel® Atom CPU for Built-In Applications
Features
- Intel® Atom x7-E3950 Quad Core CPU, 1.6 GHz
- Up to 8GB DDR3L RAM
- mSATA flash storage up to 512GB
- Front-side IP65 protection rating

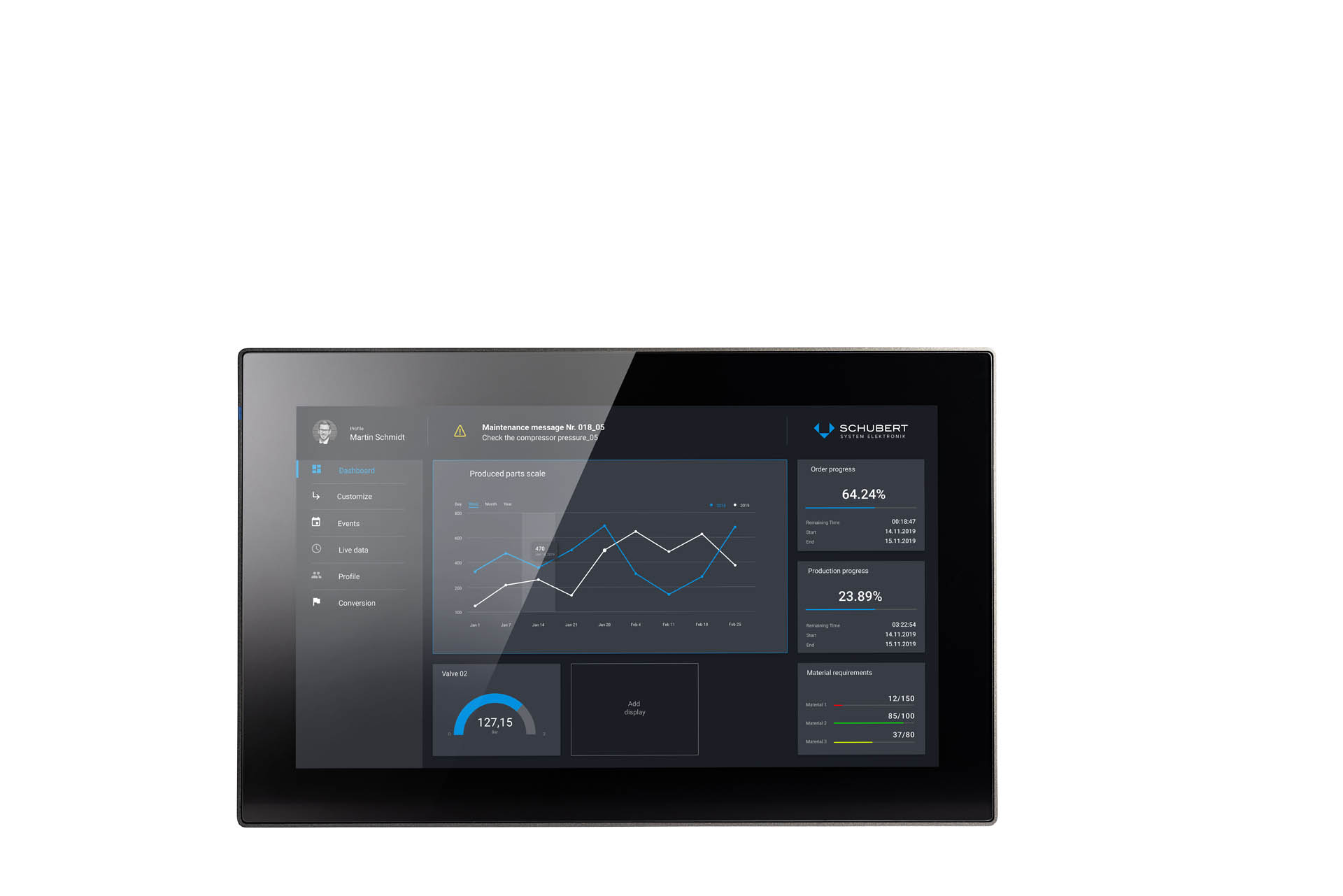

- 15.6" 1920 x 1080p capacitive touch display

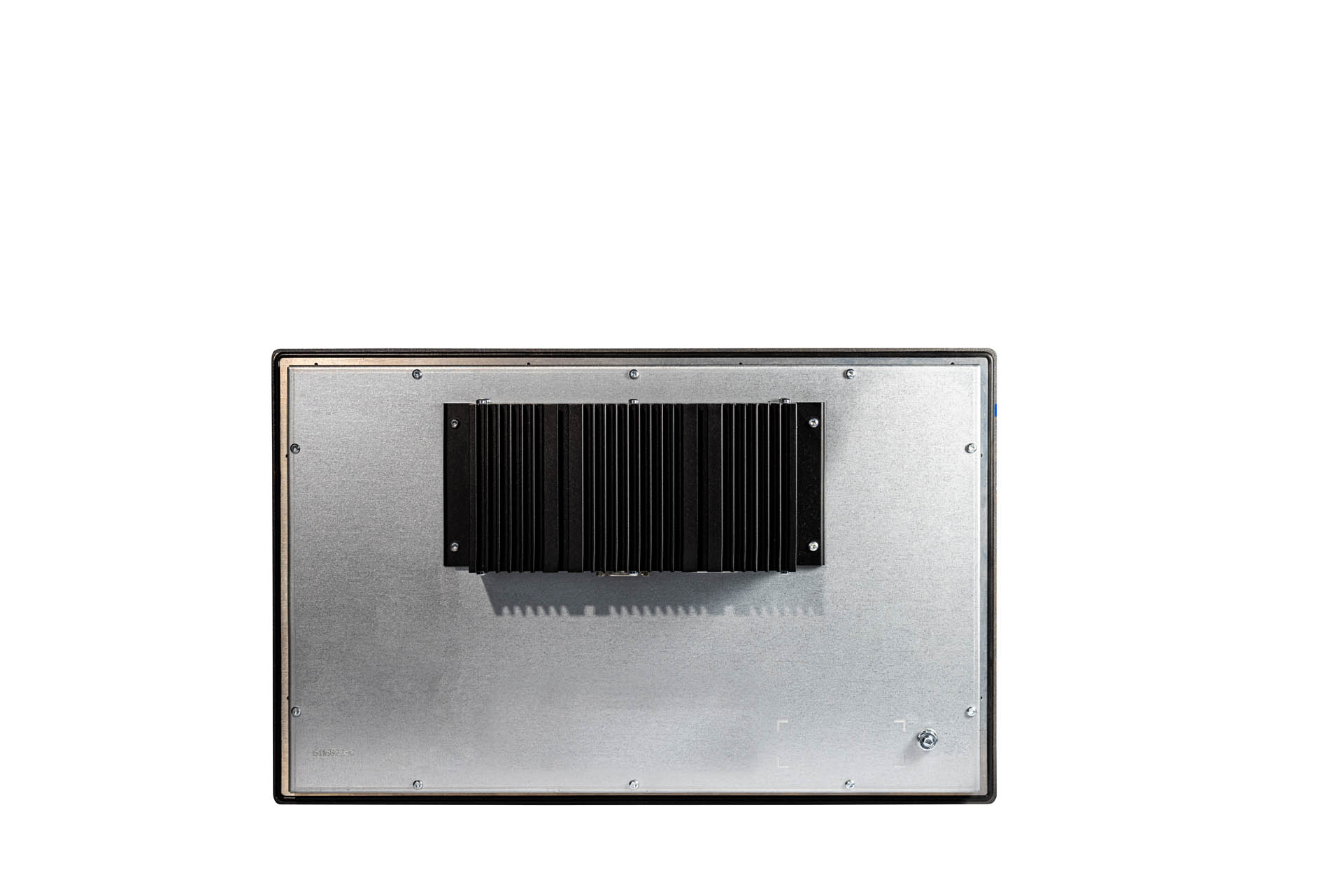

- Fanless modern design made in Germany
- Certified for EN 55024, EN 61000-6-2, EN 55032 class A, and more

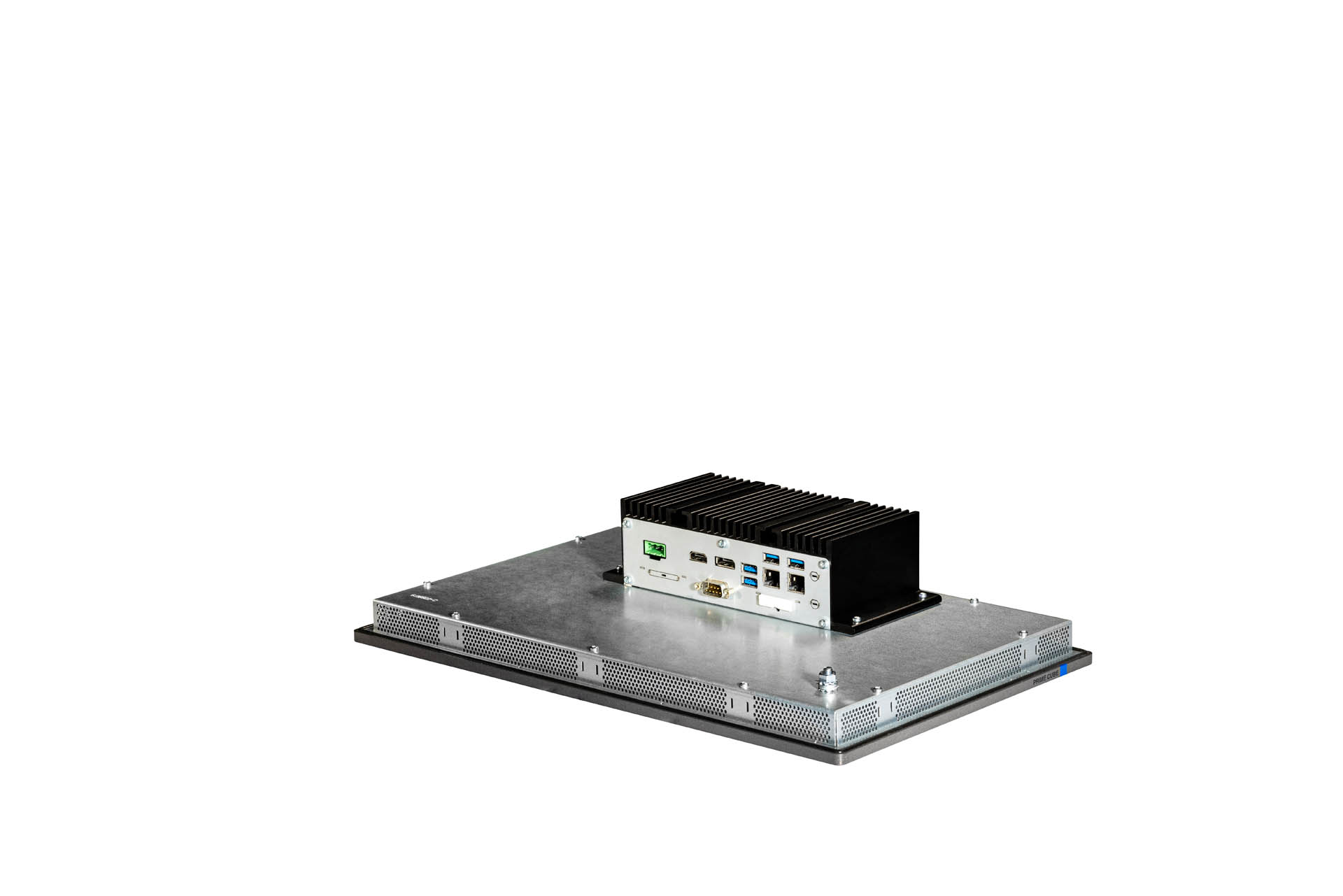

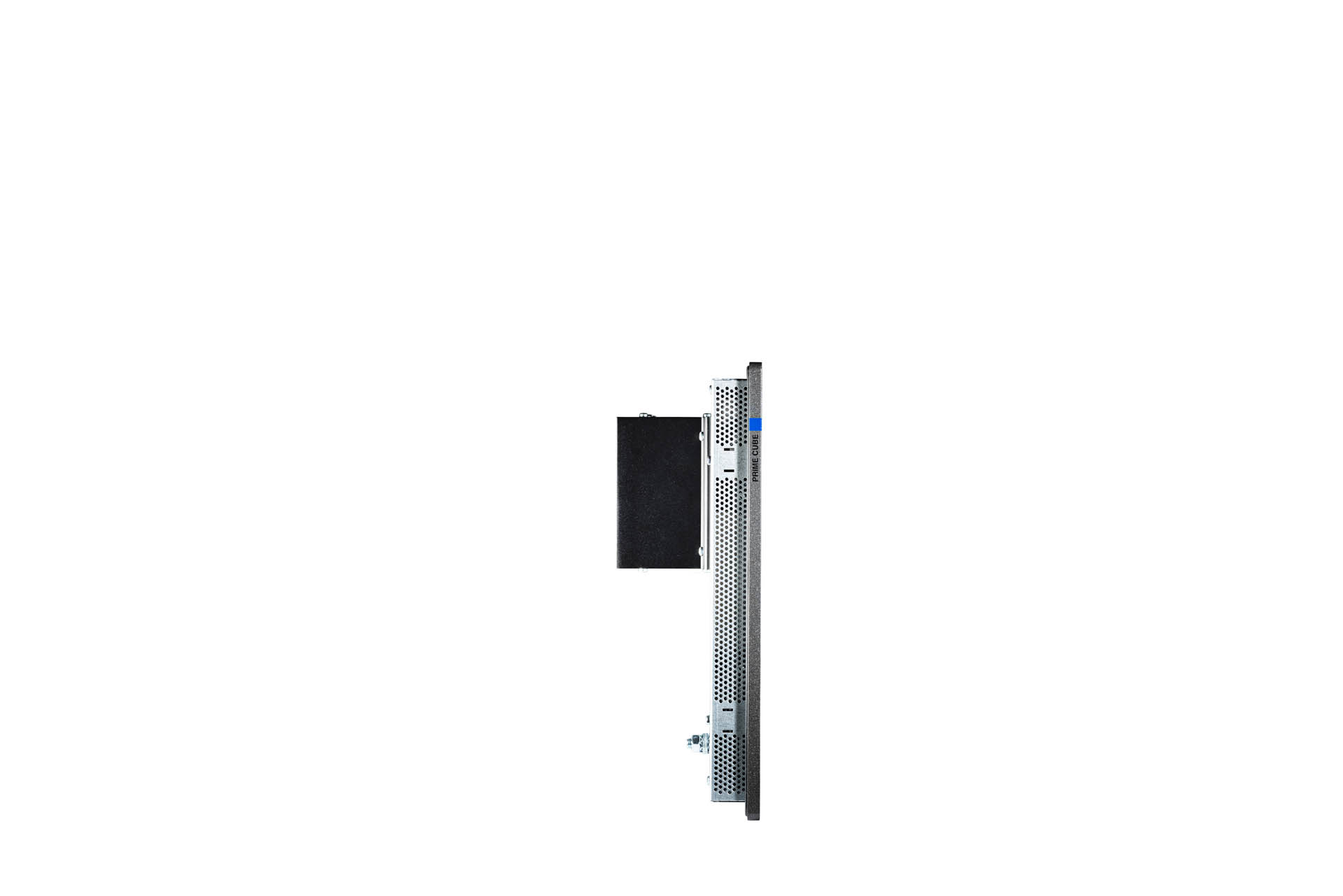

- Built-in variant with front-side mounting clamps
Product information "Prime Panel Pico 15,6" Einbau"
The **Prime Panel Pico** from **Schubert System Elektronik** is a **fanless 15.6" multitouch panel PC** designed for industrial-grade built-in applications, **Made in Germany**. Ideally suited for **24/7 operation**, even in harsh environments, thanks to its **IP65 protection rating**. Verified components, **efficient x86 platforms**, and **passive cooling** ensure **low operating and maintenance costs** as well as a **long service life**.
Technical details
| Add-ons: | Full-size Mini PCIe, Full-size mSATA port, SIM Socket |
|---|---|
| CPU: | Intel® Atom™ E3950 |
| Certificates: | EN 55024, EN 55032 Klasse A, EN 60068-2-6, EN 60068-2-27, EN 61000-6-2 |
| DC Input: | 3-pin pluggable terminal block |
| Display size: | 15,6" |
| Ethernet: | Gigabit |
| Ethernet Ports: | 1x, 2x |
| Humidity: | 20% ~ 90% (non condensing) |
| IP protection class: | IP65 |
| Memory: | 1x DDR3 Slot |
| Memory capacity: | 2 GB, 4 GB, 8 GB |
| Mounting: | Installation |
| Operating Temperature: | -10°C ~ 50°C |
| Operating system: | Linux, Windows 10, Windows 10 IoT |
| Power supply: | 12 ~ 32V DC |
| Screen resolution: | 1920 x 1080 |
| Serial Ports: | RS-232, RS-422, RS-485 |
| Storage: | mSATA SSD |
| Touch: | Projected Capacitive Touch |
| USB: | USB 3.0 |
| USB Ports: | 1x, 2x, 3x, 4x |
| Video: | DisplayPort, HDMI |
