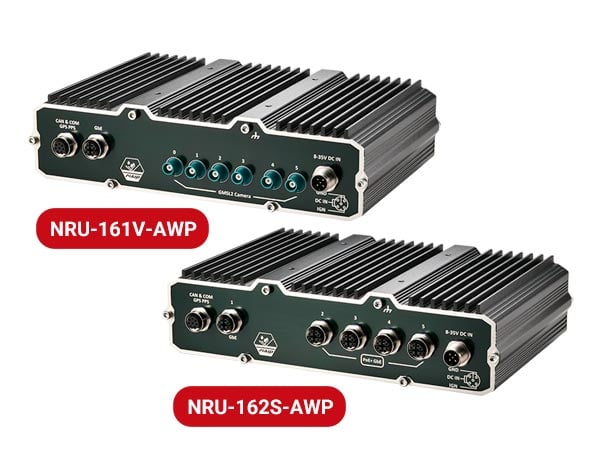

NRU-161V-AWP
IP66 waterproof Jetson Orin™ NX / Nano AI computer with six GMSL2 ports
Features
- NVIDIA® Orin™ NX or Orin™ Nano SoM with JetPack
- 4/8/16 GB LPDDR5 RAM
- Water and dust resistant to IP66

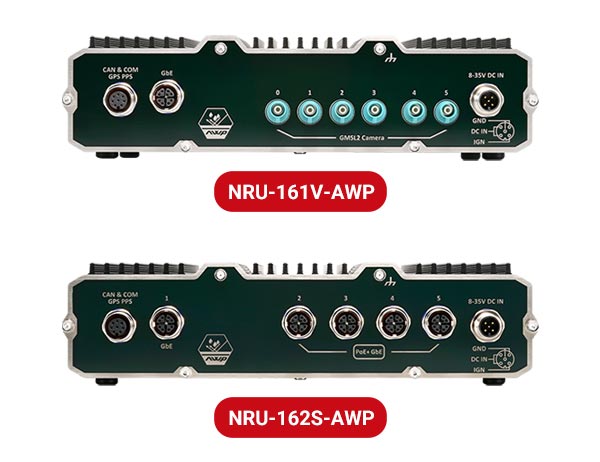

- 6x GMSL2 vehicle cameras via FAKRA Z
- CAN FS and one RS232 port via A-coded M12 connectors
- Power supply via 8 V – 35 V DC input, with integrated ignition control
The NRU-161V-AWP is an IP66-certified Jetson computer powered by NVIDIA® Jetson Orin™ NX or Orin™ Nano. It is specifically designed for edge AI applications in demanding environments. Target applications include smart city street installations, AI-assisted inspections in the food industry, perception units for outdoor robots, and ADAS for off-highway vehicles. With its waterproof design, the NRU-161V-AWP combines robustness and performance at an affordable price.
Key features of the NRU-161V-AWP IP66 Jetson computer
- Powerful AI inference: The NRU-161V-AWP delivers up to 100 energy-efficient TOPS (INT8) of AI performance via NVIDIA® Jetson Orin™ NX and can transcode up to 18 1080P video streams simultaneously. This makes it ideal for data-intensive applications.
- Comprehensive camera connectivity: Supports up to six GMSL2 cameras with pre-installed drivers for IMX390, ISX031 and IMX490 CMOS sensors. It also offers a waterproof GbE port for data transfer with external devices such as LiDAR or other computers.
- Waterproof IP66 design: The robust housing is specially designed to withstand water, dust and other environmental influences, enabling use in harsh outdoor environments such as agriculture, mining and construction.
- Compact and space-saving design: With dimensions of only 225 x 136 x 55 mm, the NRU-161V-AWP fits easily into tight spaces, whether in vehicles, control cabinets or robots.
- Flexible expansion options: Equipped with a MiniPCIe slot for CAN/COM/WiFi modules and an M.2 B-key slot for 4G LTE/5G NR communication modules, the Jetson computer offers versatile options for adaptation to various applications.
- Reliable vehicle integration: The NRU-161V-AWP supports a wide DC input range from 8V to 35V, ignition control, a CAN-FD bus port and an RS232 port, making it ideal for mobile installations.
Why the NRU-161V-AWP is the ideal IP66 Jetson computer
The NRU-161V-AWP combines the AI power of the NVIDIA® Jetson Orin™ NX platform with a waterproof IP66 design and comprehensive camera connectivity. These features make it the perfect solution for smart agriculture, mining, road applications, edge inspections and autonomous mobile robots (AMRs) in outdoor environments. Its rugged, compact design and versatile expansion options provide a reliable and cost-effective edge AI platform.
Discover the benefits of the NRU-161V-AWP IP66 Jetson computer and invest in a future-proof solution for your AI applications.
Technical details
| Add-ons: | Full-size Mini PCIe, M.2 2242 B key, M.2 3052 B key, SIM Socket |
|---|---|
| CPU: | NVIDIA® Jetson Orin™ NX |
| Certificates: | CE, EN 50121, FCC Class A, MIL-STD-810H, Method 514.8, Category 4, MIL-STD-810H, Method 516.8, Procedure I |
| DC Input: | M12 A-coded 5-pin port |
| Design: | Normal |
| Ethernet Ports: | 1x 10 Gigabit Ethernet port via M12 X-coded 8-pin connector |
| Humidity: | 10% ~ 90% (non-condensing) |
| IP protection class: | IP66 |
| Ignition control: | Yes |
| Internal Graphics: | NVIDIA® Ampere GPU |
| Memory capacity: | 4 GB, 8 GB, 16 GB |
| Mounting: | Wall-mount |
| Operating Temperature: | -25°C ~ 70°C |
| Operating system: | NVIDIA JetPack |
| PoE: | No |
| Power supply: | 8 ~ 35V DC |
| Serial Ports: | RS-232 |
| Storage: | M.2 2242 NVMe |
| USB: | USB-C, USB 2.0 |
| USB Ports: | 1x, 2x, 3x |
| Video: | VGA |
