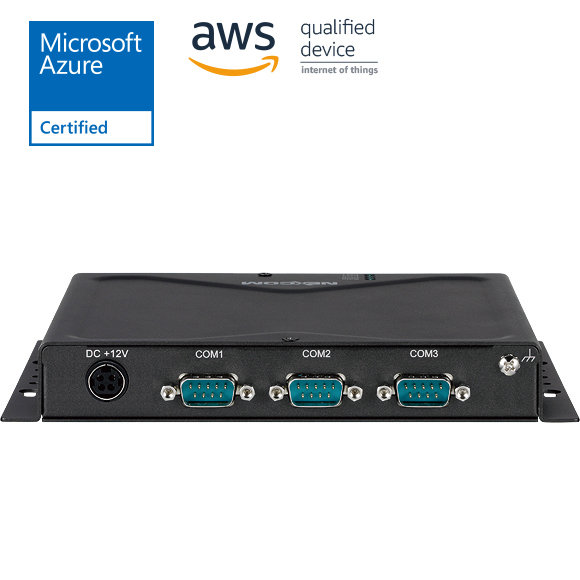

NISE-50-J1900
Fanless compact IoT Gateway with Intel Celeron J1900 CPU
Features
- Intel Celeron J1900 Quad Core CPU
- 2GB On-Board DDR3L RAM
- On-Board 16GB EMMC or optional mSATA module
- 3x mPCIe for add-on cards
- 2x Intel I210AT GbE LAN ports
- 4x USB 2.0, 3x serial interfaces
- -10 ~ 60°C operating temperature
- 12V DC Input
Powered by the latest generation of Intel® Celeron® processor J1900 (formerly codenamed "Bay Trail"), NISE 50 series positions at the intelligent IoT gateway for factory automation and for smart city applications. DDR3L SODIMM memory socket, the NISE 50 series support operating temperature from -10°C to 60°C with 12V DC input with +/-20% range. The NISE 50 series have strong connectivity - Ethernet-based LAN port and traditional RS485, mainly for Modbus TCP or Modbus RTU communication. For wireless connectivity, there are 3x mini-PCIe sockets which can support optional wireless modules for IoT applications, for example, Wi-Fi, Bluetooth, 3.5G and 4G LTE module. NISE 50 is definitely the best choice for M2M intelligent system as an intelligent IoT gateway.
Technical details
| Add-ons: | Full-size Mini PCIe, SIM Socket |
|---|---|
| Audio: | Speaker out |
| CPU: | Intel® Celeron® J1900 |
| Certificates: | CE, FCC Class A, UL |
| DC Input: | 4-pin pluggable terminal block |
| Ethernet: | Gigabit |
| Ethernet Ports: | 1x, 2x |
| Humidity: | 10% ~ 90% (non-condensing) |
| Memory: | 1x DDR3 Slot |
| Memory capacity: | 2 GB |
| Mounting: | Wall-mount (optional) |
| Operating Temperature: | -10°C ~ 55°C |
| Operating system: | Linux, Windows 7, Windows 10 IoT |
| Power supply: | 24V DC |
| Serial Ports: | RS-232, RS-422, RS-485 |
| Storage: | On-board EMMC, mSATA module (optional) |
| USB: | USB 2.0 |
| USB Ports: | 1x, 2x, 3x, 4x |
| Video: | HDMI |
