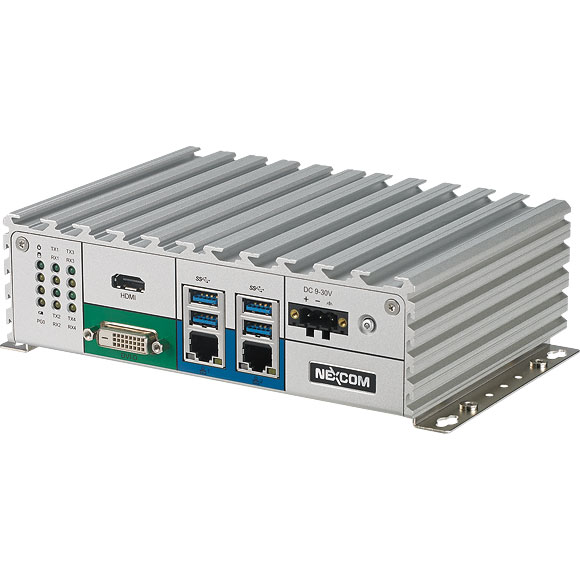

NISE-106-N3710
Fanless compact low-power industrial PC with Intel Pentium N3710
Features
- Intel Pentium N3710 Quad Core CPU
- Up to 8GB DDR5 RAM
- 1x HDMI, 1x DVI-D, 1x DisplayPort
- 2x Intel Gigabit Ethernet Ports
- 4x USB 3.0, 4x serial RS232/422/485 interfaces
- 1x 2,5" SATA 3.0 SSD
- MiniPCIe port for Wifi/4G Module
- -10 ~ 60 °C operating temperature
- 9-30V wide range input
Powered by the latest generation of Intel® Pentium processor N3710 Quad Core, 1.6GHz (formerly codenamed "Braswell "), NISE 106 presents intelligent PC-based controller and IOT gateway for factory automation. Up to 8G DDR3L memory, The NISE 106 support operating temperature from -10°C to 60°C with typical DC input 9~30V. The NISE 106 has high integration ability with optional mini-PCIe module and 4 x COM ports which makes it a reliable connection with devices in factory automation applications, IOT applications (with optional GbE LAN, Wi-Fi, 3.5G/4G LTE module) and communication applications (with optional GPIO, RS232/422/485). NISE 106 is definitely the top choice for M2M intelligent system as a factory automation controller and gateway.
Technical details
| Add-ons: | Full-size Mini PCIe, SIM Socket |
|---|---|
| CPU: | Intel Pentium N3710 |
| Certificates: | CE, FCC Class A |
| DC Input: | 3-pin pluggable terminal block |
| Ethernet: | Gigabit |
| Ethernet Ports: | 1x, 2x |
| Humidity: | 10% ~ 90% (non-condensing) |
| Memory: | 1x DDR3 Slot |
| Memory capacity: | 2 GB, 4 GB, 8 GB |
| Mounting: | Wall-mount (optional) |
| Operating Temperature: | -10°C ~ 55°C |
| Operating system: | Linux, Windows 7, Windows 8, Windows 10, Windows 10 IoT |
| Power supply: | 9 ~ 30V DC |
| Serial Ports: | RS-232, RS-422, RS-485 |
| Storage: | 2,5" SSD |
| USB: | USB 3.0 |
| USB Ports: | 1x, 2x, 3x, 4x |
| Video: | DVI-I, DisplayPort, HDMI |
