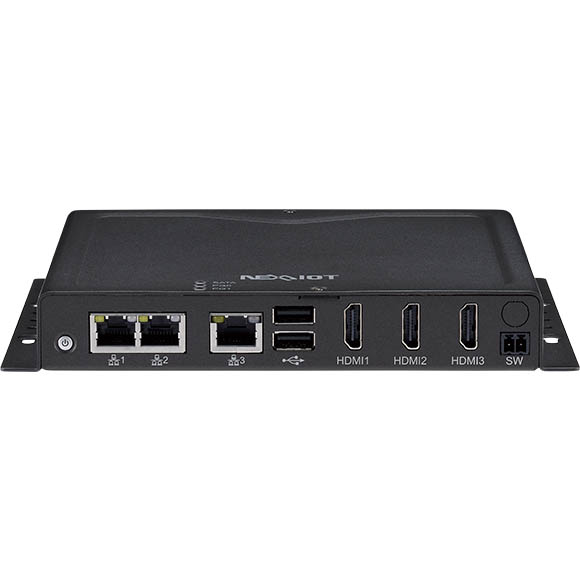

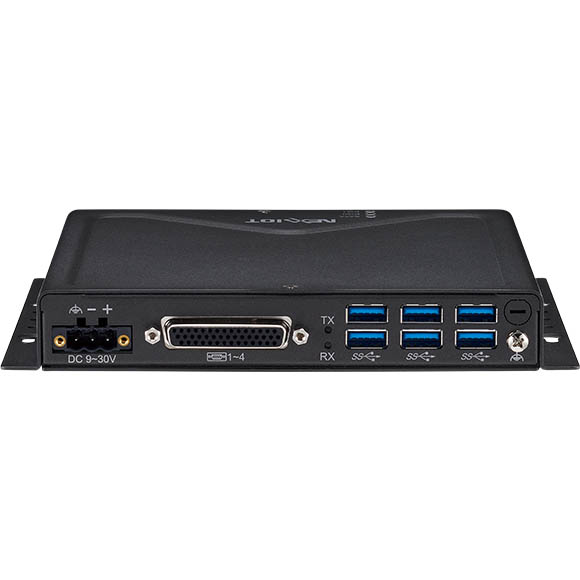

NISE-52
Lüfterloser kompaktes IoT Gateway mit Intel Celeron J3455 Quad Core CPU
Eigenschaften
- Intel Celeron J3455 Quad Core CPU
- Bis zu 8GB DDR3 RAM
- 3x HDMI
- 3x Intel GbE LAN Ports
- 6x USB 3.0, 2x USB 2.0
- 1x DB44 Port -> 4x RS232/422/485
- TPM 2.0 Modul
- 2x Full Size mPCIe
- 9V - 30V DC Input
Powered by the latest generation of Intel® Celeron® processor J3455 (formerly codenamed “Apollo Lake"), NISE 52 is fanlsess PC designed for industrial applications which demand low power consumption and abundant I/O interfaces but with limited installation space.
NISE 52 supports a wide range of operating temperature from -10°C to 60°C and wide range DC power input from 9V to 30V. NISE 52 is also the first system in the slim NISE 50 series to support 3 independent displays. The NISE 52 have strong connectivity - Ethernet-based LAN port and traditional serial port, mainly for Modbus TCP or Modbus RTU communication. For wireless connectivity, there are 2 x mini-PCIe socket which can support optional wireless modules for IoT applications, for example, Wi-Fi, Bluetooth, 4G LTE modules as well as storage module. NISE 52 is definitely the best choice for M2M intelligent system as an intelligent IoT gateway.
Technische Details
| Arbeitsspeicher: | 1x DDR3 Slot |
|---|---|
| Arbeitsspeicher Kapazität: | 2 GB, 4 GB, 8 GB |
| Befestigung: | Wandhalterung |
| Betriebssystem: | Linux, Windows 10, Windows 10 IoT |
| Betriebstemperatur: | -10°C ~ 55°C |
| CPU: | Intel® Celeron® J3455 |
| Erweiterungen: | Full-size Mini PCIe, SIM Socket |
| Ethernet: | Gigabit |
| Festplatte: | mSATA SSD |
| Feuchtigkeit: | 10% ~ 90% (nicht kondensierend) |
| Netzwerkschnittstellen: | 1x, 2x, 3x |
| Serielle Schnittstellen: | RS-232, RS-422, RS-485 |
| Stromanschluss: | 3-Pin Phoenix Klemme |
| Stromversorgung: | 9 ~ 30V DC |
| TPM: | TPM 2.0 |
| USB: | USB 3.0 |
| USB-Anschlüsse: | 1x, 2x, 3x, 4x, 5x, 6x |
| Video: | HDMI |
| Zertifizierung: | CE, FCC Class A |
